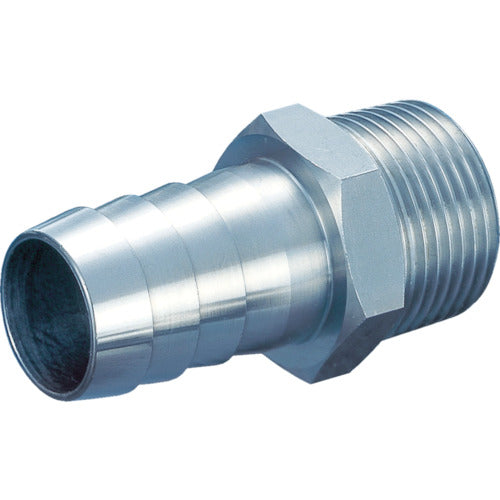

ASOH Ace nipple PT1/2XΦ7 HN-7407 1 piece

Catalog number: HN-7407 Features: ●For connecting hoses and screws Applications: ●Hose fittings. Specifications: ●Connection diameter D: R1/2 ●Hexagonal face (mm): 22 ●Maximum operating pressure (MPa): 3.45 ●Connection diameter (bamboo shoot outer diameter) (mm): 7.0 ●Type: Ace nipple ●Operating fluid: water, air, oil ●Height (mm): 49 ●Fluid temperature (℃): -50 to 150℃ ●Operating pressure: 3.45MPa Material/Finish: ●Body: Stainless steel (SUS304) Note: ●HN-7034, 7040, 7052, 7066, 7078, and 7100 are made of stainless steel (SCS13). ●HN-7066, 7078, and 7100 are manufactured in China.
