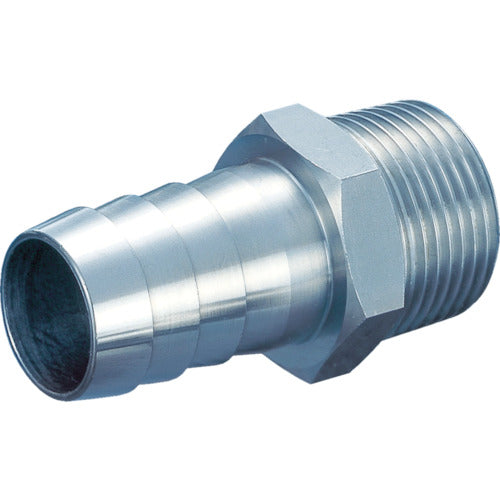

ASOH Ace nipple PT1/8XΦ5 HN-7105 1 piece

Catalog number: HN-7105 Features: ●For connecting hoses and screws Applications: ●Hose fittings. Specifications: ●Connection diameter D: R1/8 ●Hexagonal face size (mm): 12 ●Maximum operating pressure (MPa): 3.45 ●Connection diameter (bamboo shoot outer diameter) (mm): 5.0 ●Type: Ace nipple ●Usable fluid: water, air, oil ●Height (mm): 36 ●Usable fluid: water, air, oil ●Fluid temperature: -50 to 150°C ●Usable pressure: 3.45MPa Material/Finish: ●Body: Stainless steel (SUS304) Note: ●HN-7034, 7040, 7052, 7066, 7078, and 7100 are made of stainless steel (SCS13). ●HN-7066, 7078, and 7100 are manufactured in China.
