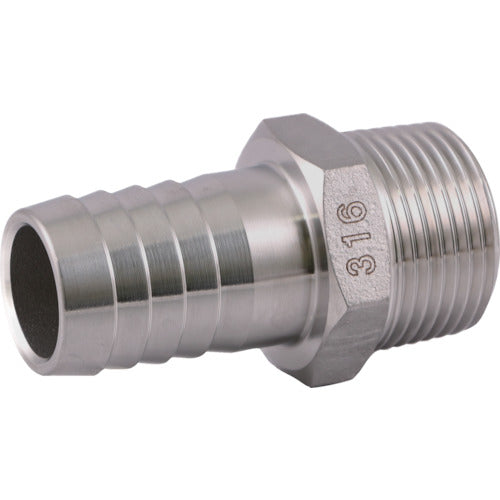

ASOH Ace nipple PT3/4 x Φ27 SUS316 HN-8627 1 piece

Catalog number: HN-8627 Features: ● Hose nipple with better corrosion resistance. Specifications: ● Connection diameter D: PT3/4 ● Hexagonal face size (mm): 29 ● Maximum operating pressure (MPa): 3.45 or less ● Connection diameter (bamboo shoot outer diameter) (mm): 27 ● Connection diameter (screw): PT3/4 ● Type: Ace nipple ● Operating temperature (℃): -50 to 150 ● Fluid used: Fluid that does not adversely affect the material ● Operating pressure (MPa): 3.45 Material/Finish: ● Stainless steel (SUS316)
