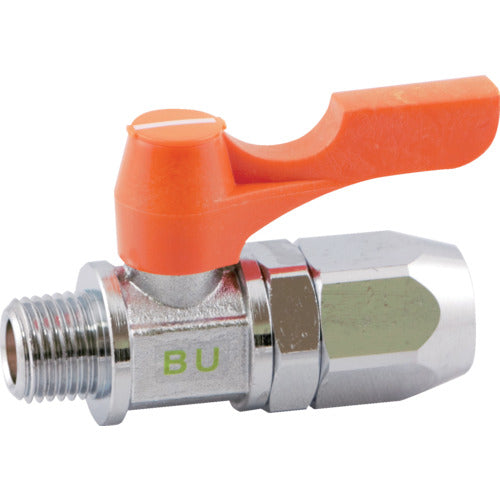

ASOH Ace Ball for Urethane Hose PT1/4XΦ6.5 BU-1265R 1 pc

Catalog number: BU-1265R Features: ● Compact shape with integrated ball valve and fitting. ● Angle type. ● Unique color sense and design enhance the functionality and aesthetics of the equipment. Specifications: ● Height (mm): 29 ● Operating temperature range (℃): -10 to 80 (excluding frozen areas) ● Connection diameter D: R1/4 ● Compatible tube size (mm): φ6.5 x φ10 ● Fluid used: Water, air, oil (fluids that do not adversely affect the material) ● Connection hose outer diameter (mm): 10 ● Operating temperature range: -10 to 80℃ (excluding frozen areas) ● Operating pressure: 0.98MPa Material/Finish: ● Body: Brass (C3771, C3604) + chrome plating ● O-ring: Nitrile rubber (NBR)
