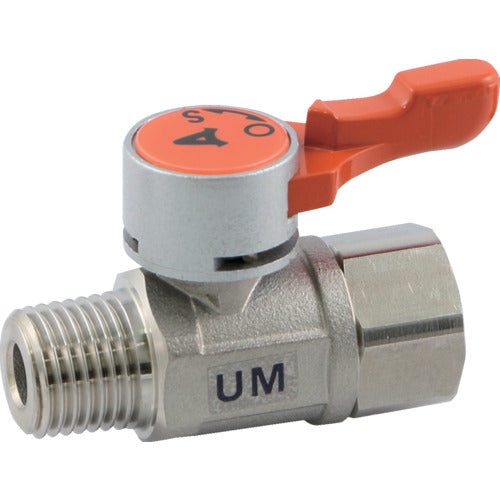

ASOH Ace Ball-21 External x Internal Thread Type PT1/8 UM-1011 1 pc

Catalog number: UM-1011 Features: ● Compact ball valve with integrated valve and fitting. ● Handle rotation direction can be freely set, and A and B plug specifications are also available. ● Excellent corrosion resistance, and can be used with a wide variety of fluids. ● Flow rate, flow rate, and pressure loss are extremely low. Specifications: ● Connection port size D1: R1/8 ● Connection port size D2: Rc1/8 ● Height (mm): 24 ● Operating temperature range (℃): -10 to 120 (excluding frozen areas) ● Fluids used: water, air, oil (fluids that do not adversely affect the material) ● Operating temperature range: -10 to 120℃ (excluding frozen areas) ● Operating pressure: 0.98MPa Material/Finish: ● Body: Stainless steel (equivalent to SCS13, SUS304) ● O-ring: Viton (FKM-70)
