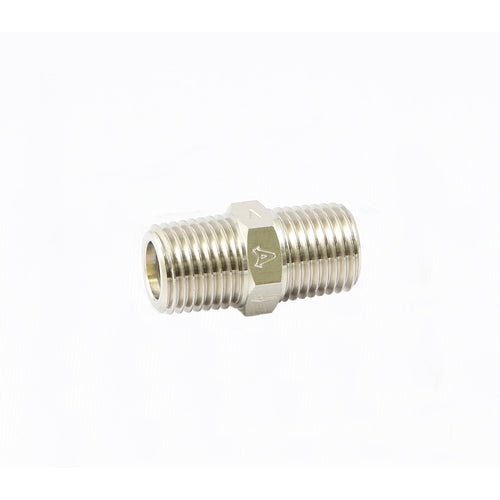

ASOH A-Check Brass Check Valve External Thread x External Thread Type R1/4 AT-1022R 1 pc

Catalog number: AT-1022R Features: ●The check valve body is a double-threaded type, which allows for space-saving piping. ●The simple poppet structure prevents leakage against check pressure. ●The piping can be connected in either a vertical or horizontal position. ●Nickel plating maintains the beauty of the piping. Applications: ●A valve that prevents backflow of fluid. Specifications: ● Effective cross-sectional area (mm2): 8.2 ● Connection diameter: R1/4 ● Total length (mm): 29 ● Operating pressure (MPa): 2.0 ● Operating temperature range (℃): 0 to 100 ● Fluid used: air, water ● Fixed orifice diameter (mm): 3.5 ● Hexagonal side (mm): 14 ● Hexagonal side length (mm): 14 ● Operating temperature: 0 to 100℃ ● Maximum operating pressure: 2.0MPa ● Cracking pressure: 0.007MPa Material/Finish: ● Body: Brass (C3604BD, cd75PPM or less) + nickel plating
