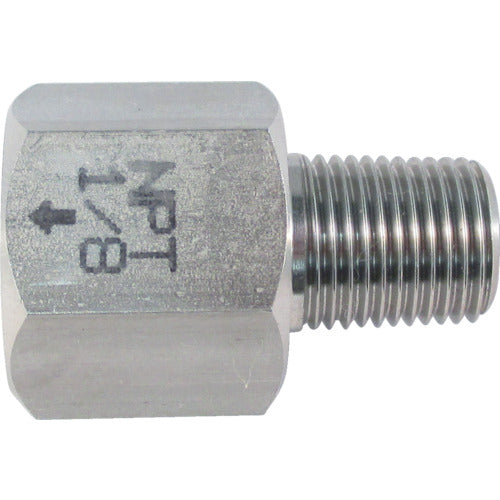

ASOH Stainless Steel Conversion Socket External PT1/8 x Internal NPT1/8 NF-8311 1 pc

Catalog number: NF-8311 Features: ●For converting R (PT) external threads to NPT internal threads (American threads) ●Made of stainless steel Applications: ●For converting R (PT) external threads to NPT internal threads (American threads) Specifications: ●Connection diameter D: NPT1/8 ●Hexagonal face size (mm): 17 ●Maximum operating pressure (MPa): 20.6 ●Connection diameter D1: R1/8 ●Connection diameter D2: NPT1/8 ●Type: Internal and external socket ●Operating fluid: Water, air, oil ●Fluid temperature (℃): -50 to 150℃ ●Operating pressure: 20.6MPa Material/Finish: ●Stainless steel (SUS304)
