ASOH Ciccolo Hose Joint Type PT1/4XΦ9 CY-1209 1 pc

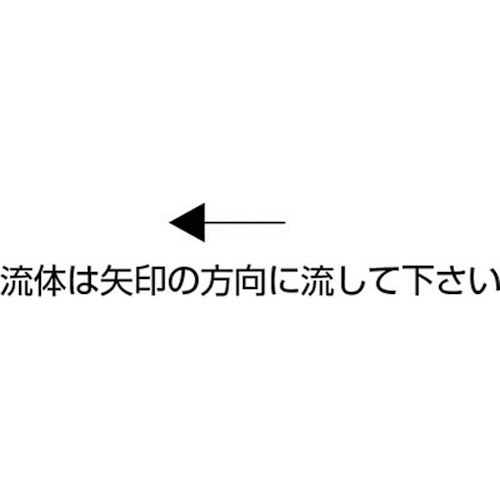

Catalog number: CY-1209 Features: ●The needle valve and fitting are integrated to respond to all applications. ●Hose joint type. ●The unique color sense and design enhance the functionality and beauty of the equipment. Applications: ●For water, air, and oil at 0.98MPa (80℃ to -10℃) (excluding frozen areas). Specifications: ●Height (mm): 44 ●Operating temperature range (℃): -10 to 80 (excluding frozen areas) ●Connection diameter D: R1/4 ●Outer diameter of bamboo shoot (mm): 9.0 ●Operating fluid: water, air, oil (fluids that do not adversely affect the material) ●Operating temperature range: -10 to 80℃ (excluding frozen areas) ●Operating pressure: 0.98MPa Material/Finish: ●Body: Brass (C3604, C3771) + chrome plating ●O-ring: Nitrile rubber (NBR) Caution: ●Fluid should flow in the direction of the arrow on the body.
