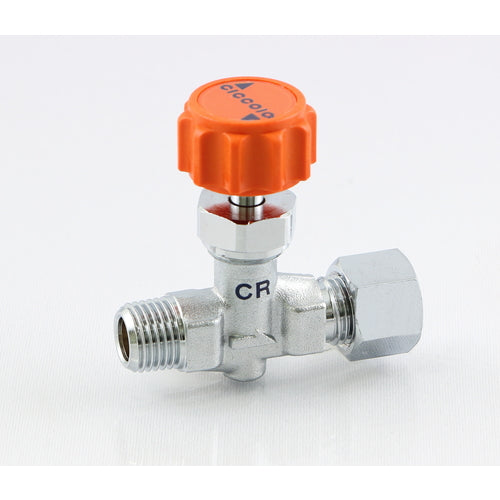

ASOH Ciccolo Ring Joint Type PT1/4XΦ6 CR-1206 1 pc

Catalog number: CR-1206 Features: ●A compact shape with an integrated needle valve and fitting. ●The unique color sense and design enhance the functionality and beauty of the equipment. Applications: ●For water, air, and oil at 0.98MPa (80℃ to -10℃) (excluding frozen areas). Specifications: ●Connection diameter D1: R1/4 ●Height (mm): 44 ●Operating temperature range (℃): -10 to 80 ●Applicable copper pipe outer diameter D2 (mm): 6 ●Operating fluid: Water, air, oil (fluids that do not adversely affect the material) ●Operating temperature range: -10 to 80℃ (excluding frozen areas) ●Operating pressure: 0.98MPa Materials/Finish: ●Body: Brass (C3771, C3604) + chrome plating ●Handle: Polybutylene terephthalate (PBT) ●O-ring: Nitrile rubber (NBR) Caution: ●Fluid should flow in the direction of the arrow on the body.
