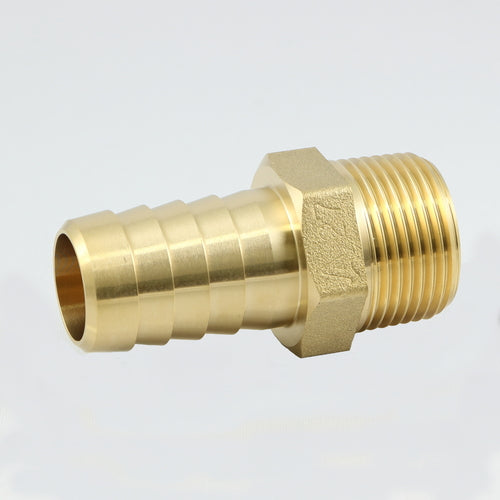

ASOH Large nipple PT1XΦ27 HN-1827 1 piece

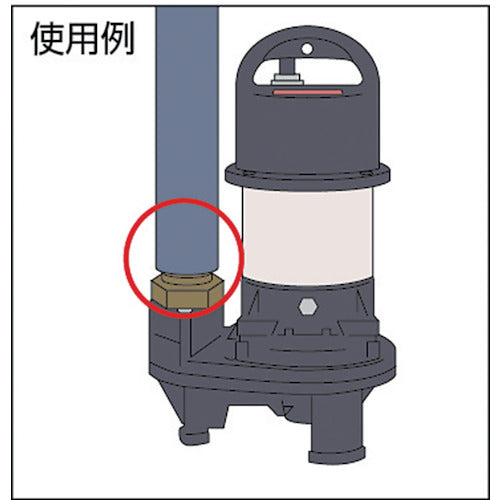

Catalog number: HN-1827 Features: ●Large nipple size allows for large volume fluid transfer. Applications: ●For connecting hoses to submersible pumps, etc. Specifications: ●Connection diameter D: R1 ●Hexagonal face size (mm): 35 ●Maximum operating pressure (MPa): 3.45 ●Connection diameter (bamboo shoot outer diameter) (mm): 27 ●Usable fluids: water, air, oil ●Usable fluids: water, air, oil ●Fluid temperature: -50 to 150°C ●Operating pressure: 3.45MPa Material/Finish: ●Brass (C3771)
