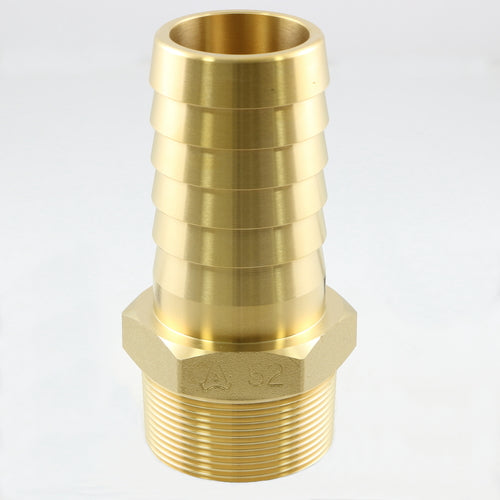

ASOH Large nipple PT2XΦ52 HN-1052 1 piece
ASOH Large nipple PT2XΦ52 HN-1052 1 piece
Regular price
¥7,722
Regular price
Sale price
¥7,722
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

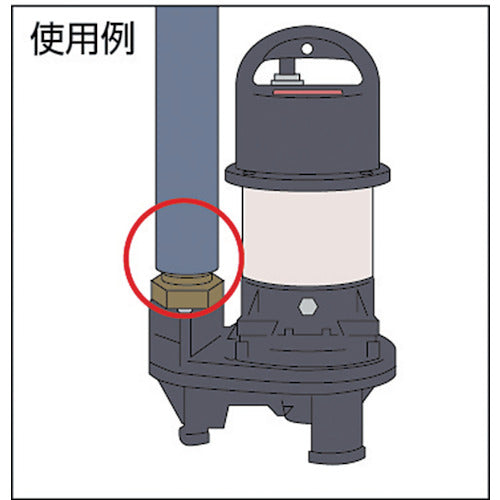

Catalog number: HN-1052 Features: ●Large nipple size allows for large volume fluid transfer. Applications: ●For connecting hoses to submersible pumps, etc. Specifications: ●Connection diameter D: R2 ●Hexagonal face size (mm): 63 ●Maximum operating pressure (MPa): 3.45 ●Connection diameter (bamboo shoot outer diameter) (mm): 52 ●Usable fluids: water, air, oil ●Usable fluids: water, air, oil ●Fluid temperature: -50 to 150°C ●Operating pressure: 3.45MPa Material/Finish: ●Brass (C3771)
