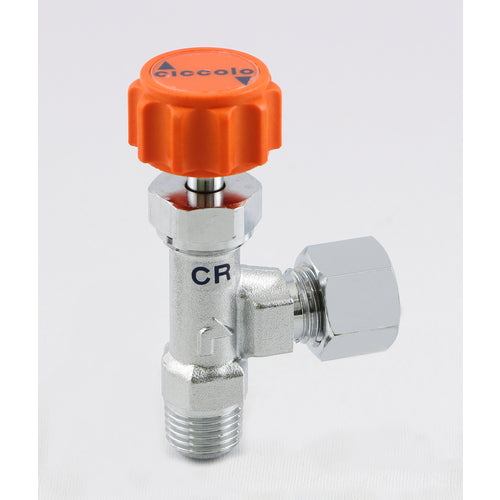

ASOH Needle Valve Ciccolo Ring Joint Type PT1/4 x Φ8 CR-3208 1 pc

Catalog number: CR-3208 Features: ● Compact shape with integrated needle valve and fitting. ● Unique color sense and design enhance the functionality and beauty of the equipment. Applications: ● Angle type for copper pipe ring connection For connecting copper pipes such as oil and pneumatic equipment Specifications: ● Connection port size D1: R1/4 ● Height (mm): 44 ● Operating temperature range (℃): -10 to 80 ● Compatible copper pipe outer diameter D2 (mm): 8 ● Fluid used: Water, air, oil (fluids that do not adversely affect the material) ● Operating temperature range: -10 to 80℃ (excluding frozen areas) ● Operating pressure: 0.98MPa Materials/Finish: ● Body: Brass (C3771, C3604) + chrome plating ● Handle: Polybutylene terephthalate (PBT) ● O-ring: Nitrile rubber (NBR) Caution: ● Flow the fluid in the direction of the arrow on the body.
