ASOH Flare joint PT1/8 x Φ6.35 FS-1102 1 piece

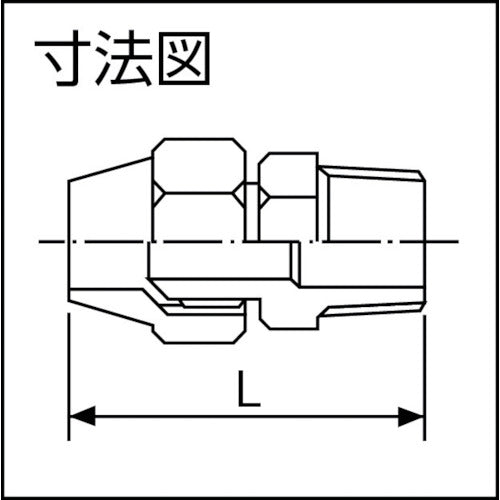

Catalog number: FS-1102 Features: ● A joint for connecting expanded copper pipes to equipment and devices. Applications: ● Copper pipe fittings. ● For connecting flared copper pipes to threaded piping. Specifications: ● Applicable copper pipe outer diameter (mm): 6.35 ● Thread: R1/8 ● Hexagonal side (mm) nut: 16 ● Hexagonal side (mm) body: 12 ● Dimensions (mm) L: 34 ● Applicable fluids: water, air, oil ● Dimensions L (mm): 34 ● Fluids used: water, air, oil ● Fluid temperature: -50 to 150°C ● Operating pressure: 3.45MPa Material/Finish: ● Brass (C3604BD) ● Brass (C3604) Caution: ● Not compatible with refrigerant gas.
