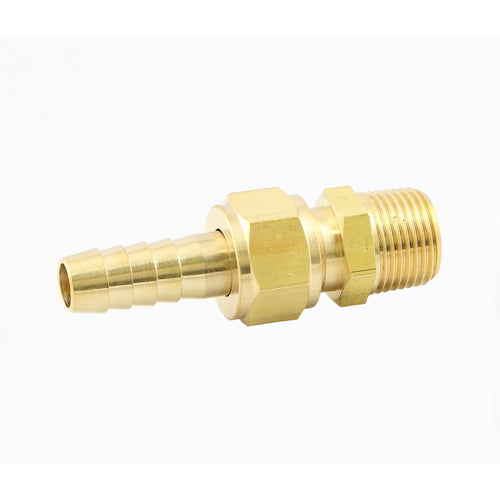

ASOH Hose joint PT1-1/4 x Φ34 HS-1034 1 piece

Catalog number: HS-1034 Features: ● Used to connect hoses and screws. Applications: ● Hose fittings. Specifications: ● Connection diameter D: R1 1/4 ● Maximum operating pressure (MPa): 3.45 ● Connection diameter (bamboo shoot outer diameter) (mm): 34 ● Connection diameter: R1 1/4 ● Hexagonal width (mm) nut: 46 ● Hexagonal width (mm) body: 45 ● Type: Hose joint ● Fluid used: Water, air, oil ● Fluid temperature (℃): -50 to 150℃ ● Operating pressure: 3.45MPa Material/Finish: ● Brass (C3604) Note: ● Freight charges will be charged separately for direct shipping
