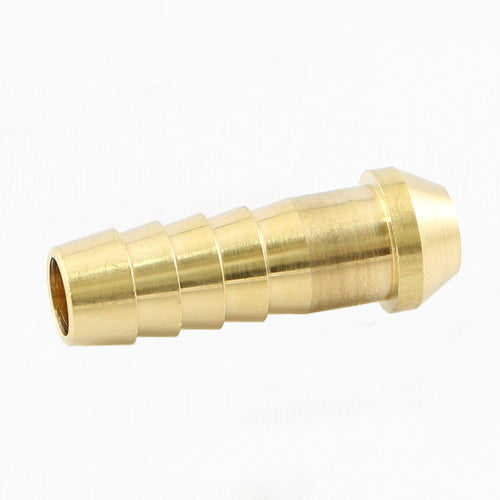

ASOH Hose joint PT1/8 x Φ9 HS-1109 1 piece

Catalog number: HS-1109 Features: ●For connecting hoses and screws Applications: ●Hose fittings. Specifications: ●Connection diameter D: R1/8 ●Maximum operating pressure (MPa): 3.45 ●Connection diameter (bamboo shoot outer diameter) (mm): 9.0 ●Connection diameter: R1/8 ●Hexagonal width (mm) nut: 16 ●Hexagonal width (mm) body: 14 ●Type: Hose joint ●Fluid used: Water, air, oil ●Fluid temperature: -50 to 150°C ●Operating pressure: 3.45MPa Material/Finish: ●Brass (C3604) Note: ●Freight charges will be charged separately for direct shipping
