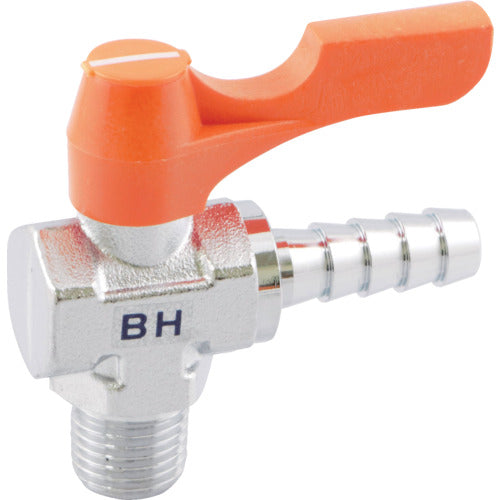

ASOH Ball Valve Ace Ball Hose Nipple Type PT1/4 x Φ9 BH-3209 1 pc

Catalog number: BH-3209 Features: ● Compact shape with integrated ball valve and fitting. ● Angle type. ● Unique color sense and design enhance the functionality and aesthetics of the equipment. Applications: ● Water, air, and oil at 0.98 MPa (80°C to -10°C) (excluding frozen areas). Specifications: ● Height (mm): 29 ● Operating temperature range (°C): -10 to 80 (excluding frozen areas) ● Connection diameter D: R1/4 ● Bamboo shoot outer diameter (mm): 9.0 ● Fluid used: Water, air, oil (fluid that does not adversely affect the material) ● Operating temperature range: -10 to 80°C (excluding frozen areas) ● Operating pressure: 0.98 MPa Material/Finish: ● Body: Brass (C3771, C3604) + chrome plating ● O-ring: Nitrile rubber (NBR)
