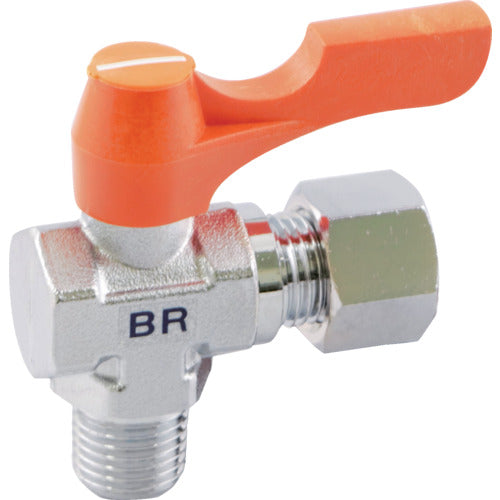

ASOH Ball Valve Ace Ball Ring Joint Type PT1/8 x Φ6 BR-3106 1 pc

Catalog number: BR-3106 Features: ● Compact shape with integrated ball valve and fitting. ● Angle type. ● Unique color sense and design enhance the functionality and aesthetics of the equipment. Applications: ● For water, air, and oil at 0.98 MPa (80°C to -10°C) (excluding frozen areas). Specifications: ● Height (mm): 29 ● Operating temperature range (°C): -10 to 80 (excluding frozen areas) ● Connection diameter D: R1/8 ● Compatible copper pipe outer diameter (mm): 6.00 ● Fluid used: Water, air, oil (fluids that do not adversely affect the material) ● Operating temperature range: -10 to 80°C (excluding frozen areas) ● Operating pressure: 0.98 MPa Material/Finish: ● Body: Brass (C3771, C3604) + chrome plating ● O-ring: Nitrile rubber (NBR)
