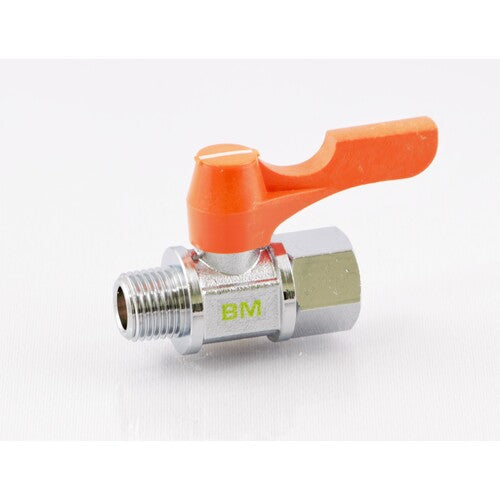

ASOH Ball Valve Ace Ball External x Internal Thread Type PT1/8 BM-9011R 1 pc

Catalog number: BM-9011R Features: ● Compact shape with integrated ball valve and fitting. ● Double taper type. ● Unique color sense and design enhance the functionality and aesthetics of the equipment. Applications: ● For water, air, and oil at 0.98MPa (80℃ to -10℃) (excluding frozen areas). Specifications: ● Connection diameter D1: R1/8 ● Connection diameter D2: Rc1/8 ● Height (mm): 29 ● Operating temperature range (℃): -10 to 80 (excluding frozen areas) ● Fluid used: Water, air, oil (fluids that do not adversely affect the material) ● Operating temperature range: -10 to 80℃ (excluding frozen areas) ● Operating pressure: 0.98MPa Material/Finish: ● Body: Brass (C3771, C3604) + chrome plating ● O-ring: Nitrile rubber (NBR)
