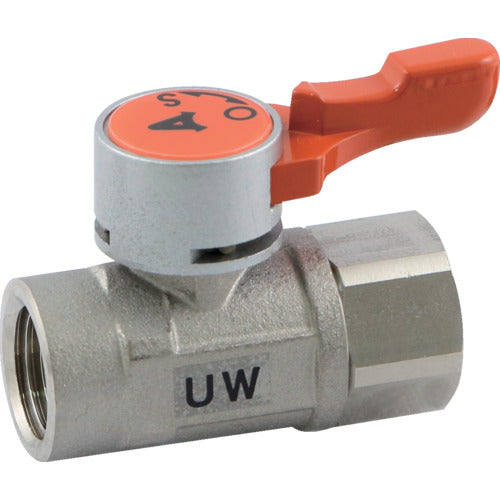

ASOH Ball Valve Ace Ball-21 Internal x Internal Thread Type PT1/4 UW-1022 1 pc

Catalog number: UW-1022 Features: ● Compact ball valve with integrated valve and fitting. ● Handle rotation direction can be freely set, and A and B plug specifications are also available. ● Excellent corrosion resistance, and can be used with a wide variety of fluids. ● Flow rate, flow rate, and pressure loss are extremely low. Specifications: ● Connection port size D1: Rc1/4 ● Connection port size D2: Rc1/4 ● Height (mm): 24 ● Operating temperature range (℃): -10 to 120 (excluding frozen areas) ● Fluids used: water, air, oil (fluids that do not adversely affect the material) ● Operating temperature range: -10 to 120℃ (excluding frozen areas) ● Operating pressure: 0.98MPa Material/Finish: ● Body: SCS13 (SUS304) ● O-ring: Viton (FKM-70)
