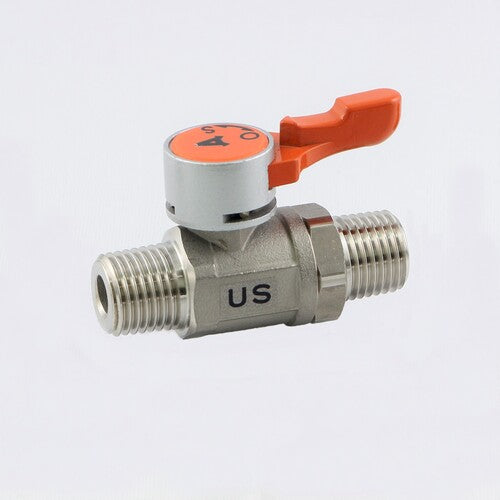

ASOH Ball Valve Ace Ball-21 External x External Thread Type PT1/4 US-1022 1 pc

Catalogue number: US-1022 Features: * A compact ball valve with an integrated valve and fitting. * The rotation direction of the handle can be set freely. * Excellent corrosion resistance, and can quickly respond to a variety of fluids. * Flow velocity, flow rate, and pressure loss are extremely low. * Maximum operating pressure: 0.98 MPa. Applications: * Food, drinking water processing equipment, etc. * Cosmetics manufacturing equipment and instruments. * Science and medical equipment and instruments. * Chemical plants, semiconductor equipment, etc. * Use for color coordination with equipment and devices, efficient piping in narrow spaces, and places where corrosion resistance is required. Specifications: ● Connection diameter D1: R1/4 ● Connection diameter D2: R1/4 ● Height (mm): 24 ● Operating temperature range (℃): -10 to 120 (excluding frozen areas) ● Fluids used: water, air, oil (fluids that do not adversely affect the material) ● Operating temperature range: -10 to 120℃ (excluding frozen areas) ● Operating pressure: 0.98MPa Material/Finish: ● Body: SCS13 (SUS304) ● O-ring: Viton (FKM-70)
