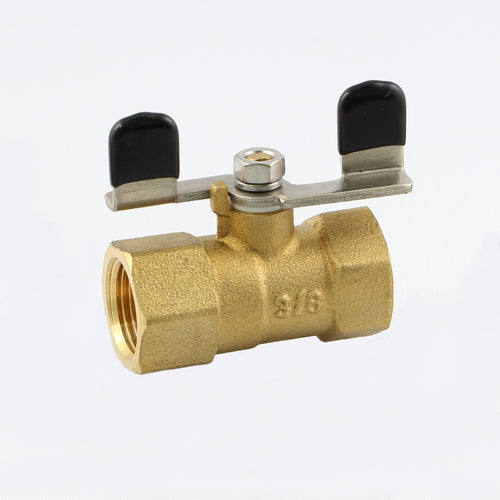

ASOH Meter Ball VG-1122 1 piece

Catalog number: VG-1122 Features: ● Ball valve for pressure gauges. ● Better airtightness than conventional lug cocks. ● Butterfly handle type, more compact than lever type. ● Also effective when the lever interferes. Specifications: ● Mounting thread d1 x d2: PF1/4 x PT1/4 ● Total length (mm): 41 ● Nominal diameter (female x female): G1/4 x Rc1/4 ● Material: Brass ● Maximum operating pressure: 0.98MPa ● Operating temperature: -10℃ to 80℃ Material/Finish: ● Body: Brass ● O-ring: Nitrile rubber (NBR.IA) ● Ball: C3604 + chrome plating ● Gasket: Fluorine resin (PTFE) ● Handle: Stainless steel (SUS) (PVC coating)
