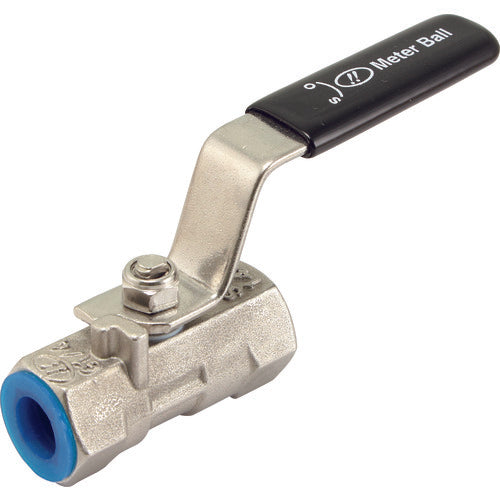

ASOH Meter Ball VG-7022 1 piece

Catalog number: VG-7022 Features: ●The meter ball has a G thread on the gauge side, which has a smooth torque and high airtightness, making piping easy and the price is the same as that of a conventional ground cock. ●Stainless steel ball valve for pressure gauges. ●Available in lever handle and butterfly handle types. The butterfly handle type can be opened and closed easily in narrow spaces due to the length of the handle compared to the lever handle. Specifications: ●Mounting thread d1 x d2: PF1/4 x PT1/4 ●Total length (mm): 40 ●Nominal diameter (female x female): G1/4 x Rc1/4 ●Material: Stainless steel (SCS13) ●Maximum operating pressure: 3MPa ●Operating temperature: -10℃ to 180℃ (no freezing) Material/Finish: ●Stainless steel
