ASOH Ring Joint PT1/2 x Φ19.05 RS-1460 1 pc

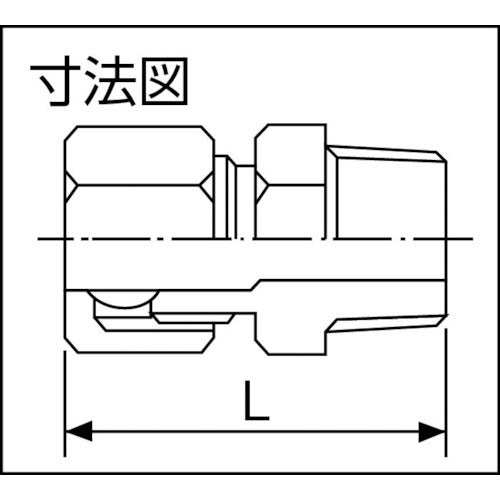

Catalog number: RS-1460 Features: ● Consists of a main body, a ring ball, and a ring nut. ● Copper pipes can be cut with a pipe cutter and installed without processing, making the work very efficient. Applications: ● Copper pipe fittings. ● For connecting copper pipes and screws. Specifications: ● Applicable copper pipe outer diameter (mm): 19.05 ● Thread: R1/2 ● Hexagonal side (mm) nut: 30 ● Hexagonal side (mm) main body: 27 ● Dimension L (mm): 50 ● Dimension (mm) L: 50 ● Fluid temperature (℃): -50 to 150℃ ● Operating pressure: 3.45MPa ● Operating temperature range: -50 to 150℃ (excluding frozen areas) Material/Finish: ● Brass (C3604) ● Brass (C3604BD) Caution: ● Not compatible with refrigerant gas.
