ASOH Ring Joint PT1/4 x Φ9.53 RS-1203 1 pc

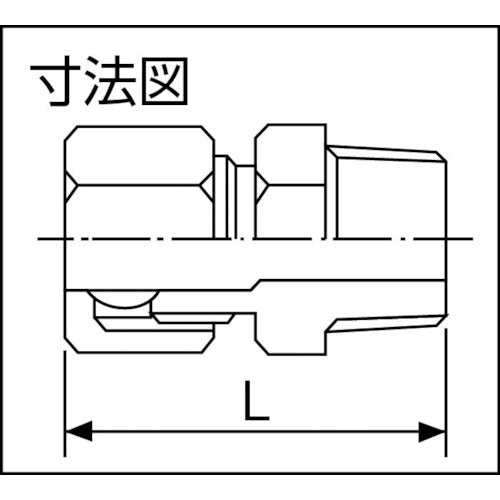

Catalog number: RS-1203 Features: ● Consists of a main body, a ring ball, and a ring nut. ● Copper pipes can be cut with a pipe cutter and installed without processing, making the work extremely efficient. Applications: ● Copper pipe fittings. ● For connecting copper pipes and screws. Specifications: ● Applicable copper pipe outer diameter (mm): 9.53 ● Screw: R1/4 ● Hexagonal side (mm) nut: 21 ● Hexagonal side (mm) main body: 17 ● Dimension L (mm): 35 ● Dimension (mm) L: 35 ● Fluid temperature (℃): -50 to 150℃ ● Operating pressure: 3.45MPa ● Operating temperature range: -50 to 150℃ (excluding frozen areas) Material/Finish: ● Brass (C3604) ● Brass (C3604BD) Caution: ● Not compatible with refrigerant gas.
