ASOH Ring Joint PT3/8 x Φ12.7 RS-1304 1 pc
ASOH Ring Joint PT3/8 x Φ12.7 RS-1304 1 pc
Regular price
¥814
Regular price
Sale price
¥814
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

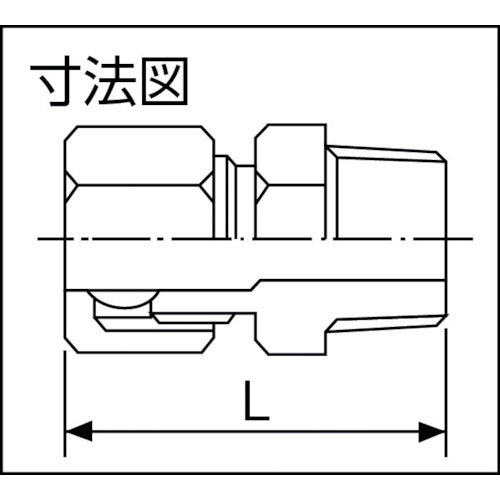

Catalog number: RS-1304 Features: ● Consists of a main body, a ring ball, and a ring nut. ● Copper pipes can be cut with a pipe cutter and installed without processing, making the work very efficient. Applications: ● Copper pipe fittings. ● For connecting copper pipes and screws. Specifications: ● Applicable copper pipe outer diameter (mm): 12.7 ● Screw: R3/8 ● Hexagonal side (mm) nut: 24 ● Hexagonal side (mm) main body: 22 ● Dimension L (mm): 43 ● Dimension (mm) L: 43 ● Fluid temperature (℃): -50 to 150℃ ● Operating pressure: 3.45MPa ● Operating temperature range: -50 to 150℃ (excluding frozen areas) Material/Finish: ● Brass (C3604) ● Brass (C3604BD) Caution: ● Not compatible with refrigerant gas.
