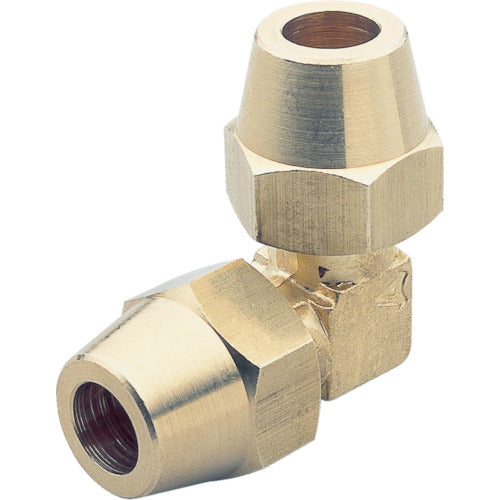

ASOH Double-ended Flare Elbow Φ6.35 FL-2022 1 pc

Catalog number: FL-2022 Features: ●For connecting flared copper pipes Applications: ●Copper pipe fittings. Specifications: ●Applicable copper pipe outer diameter (mm): 6.35 ●Hexagonal face size (mm): 16 ●Dimensions (mm) L: 29 ●Maximum operating pressure (MPa): 3.45 ●Dimensions L (mm): 29 ●Operating fluid: water, air, oil ●Fluid temperature: -50 to 150°C ●Operating pressure: 3.45MPa Material/Finish: ●Brass (C3604, C3771) Note: ●Not compatible with refrigerant gases.
