ASOH Double-ended ring joint Φ15.88 RS-2505 1 piece
ASOH Double-ended ring joint Φ15.88 RS-2505 1 piece
Regular price
¥1,980
Regular price
Sale price
¥1,980
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

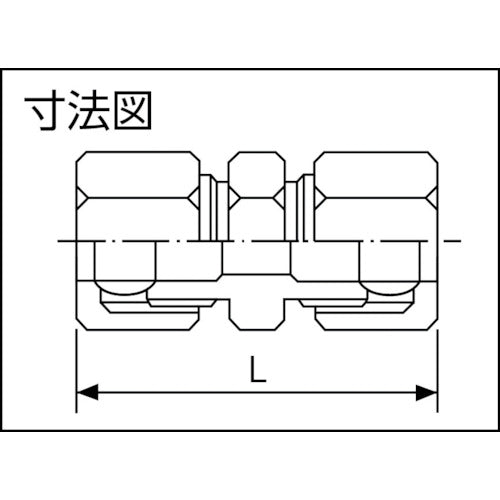

Catalog number: RS-2505 Uses: ●Copper pipe fittings. ●For connecting copper pipes. Specifications: ●Applicable copper pipe outer diameter (mm): 15.88 ●Hexagonal side (mm) nut: 27 ●Hexagonal side (mm) body: 24 ●Dimension L (mm): 58 ●Dimension (mm) L: 58 ●Fluid used: Water, air, oil ●Fluid temperature (℃): -50 to 150℃ ●Operating pressure: 3.45MPa Material/Finish: ●Brass (C3604) Note: ●Not compatible with refrigerant gases.
