ASOH Double-ended ring joint Φ19.05 RS-2606 1 piece

ASOH Double-ended ring joint Φ19.05 RS-2606 1 piece

JAN：4571133551333 　
ASOH fittings Construction and lighting supplies Pipework Equipment Ring joint (for copper pipes) Small diameter pipe fittings
¥3,366
¥3,366
Sale Sold out
Shipping calculated at checkout.

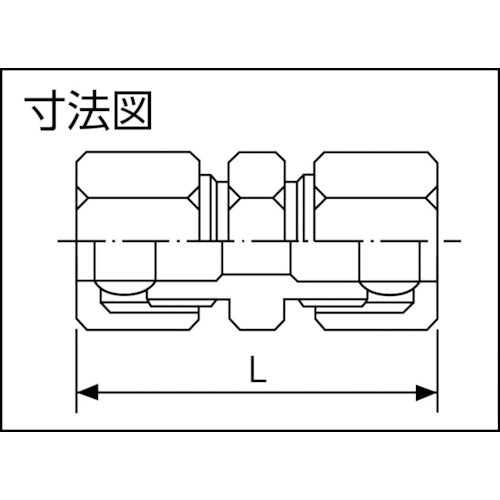

Catalog number: RS-2606 Use: ●Copper pipe fittings. ●For connecting copper pipes. Specifications: ●Applicable copper pipe outer diameter (mm): 19.05 ●Hexagonal side (mm) nut: 30 ●Hexagonal side (mm) body: 27 ●Dimension L (mm): 65 ●Dimension (mm) L: 65 ●Fluid used: Water, air, oil ●Fluid temperature (℃): -50 to 150℃ ●Operating pressure: 3.45MPa Material/Finish: ●Brass (C3604) Note: ●Not compatible with refrigerant gases.
