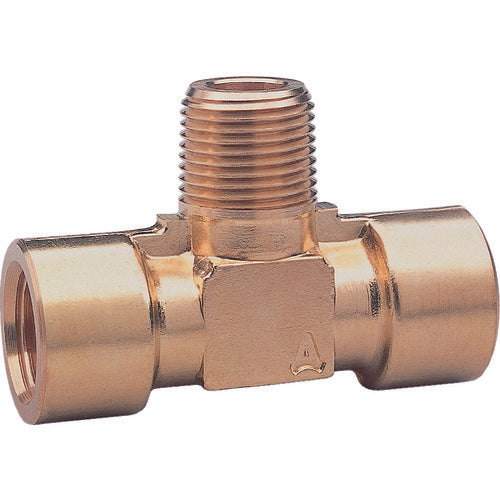

ASOH Two-sided Tee PT1/4 (RoHS) TK-1222R 1 piece

Catalog number: TK-1222R Features: ● Used for branching internal and external threaded piping. ● RoHS compliant. Applications: ● Threaded fittings. ● For branching piping. Specifications: ● Connection diameter D1: R1/4 ● Dimensions (mm) L: 50 ● Connection diameter D2: Rc1/4 ● Type: Two-way tee ● Fluid used: Water, air, oil, and other materials that have no adverse effects. ● Dimensions (mm) L1: 24 ● Fluid temperature (℃): -50 to 150℃ ● Operating pressure: 6.90MPa Material/Finish: ● Brass (C3771)
