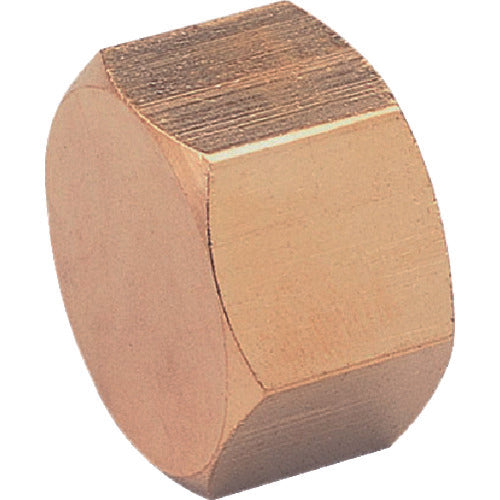

ASOH Hexagonal Cap PT1/4 (RoHS) NC-1002R 1 pc

Catalog number: NC-1002R Features: ● RoHS compliant. Applications: ● Fittings for threads. ● For temporary suspension of piping. Specifications: ● Connection diameter D: Rc1/4 ● Hexagonal side (mm): 16 ● Connection diameter: R1/4 ● Type: Hexagonal cap ● Fluid used: Water, air, oil, and other materials that have no adverse effects. ● Dimensions (mm) A: 11 ● Dimensions (mm) B: 16 ● Fluid used: Water, air, oil ● Fluid temperature (℃): -50 to 150℃ ● Operating pressure: 6.90MPa Material/Finish: ● Brass (C3604)
