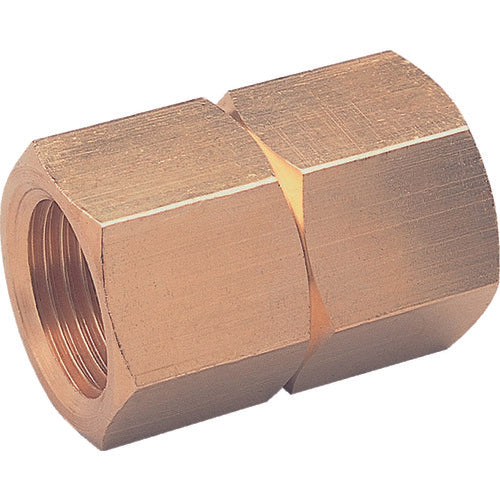

ASOH Hexagonal Socket PT1/2 (RoHS) NS-1044R 1 piece

Catalogue number: NS-1044R Features: ● Used to connect external threaded piping. ● RoHS compliant. Applications: ● Threaded fittings. ● For connecting external threaded piping. Specifications: ● Connection port size D: Rc1/2 ● Hexagonal face size (mm): 26 ● Type: Hexagonal socket ● Fluids used: Water, air, oil, and other materials that have no adverse effects. ● Dimensions (mm) B: 26 ● Dimensions (mm) A: 40 ● Fluids used: Water, air, oil ● Fluid temperature (℃): -50 to 150℃ ● Operating pressure: 6.90MPa Material/Finish: ● Brass (C3604)
