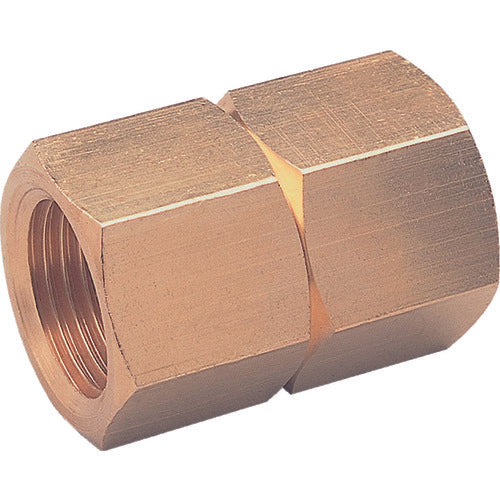

ASOH Hexagonal Socket PT1/4 (RoHS) NS-1022R 1 piece

Catalog number: NS-1022R Features: ● Used to connect external threaded piping. ● RoHS compliant. Applications: ● Threaded fittings. ● For connecting external threaded piping. Specifications: ● Connection port size D: Rc1/4 ● Hexagonal face size (mm): 17 ● Type: Hexagonal socket ● Fluid used: Water, air, oil, and other materials that have no adverse effects. ● Dimensions (mm) A: 28 ● Dimensions (mm) B: 17 ● Fluid used: Water, air, oil ● Fluid temperature (℃): -50 to 150℃ ● Operating pressure: 6.90MPa Material/Finish: ● Brass (C3604)
