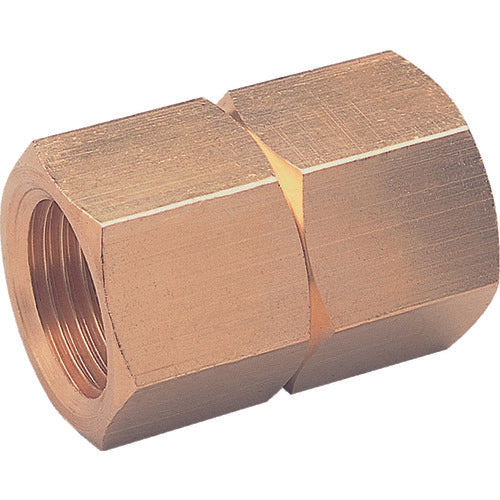

ASOH Hexagonal Socket PT1/8 (RoHS) NS-1011R 1 piece

Catalog number: NS-1011R Features: ● Used to connect external threaded piping. ● RoHS compliant. Applications: ● Threaded fittings. ● For connecting external threaded piping. Specifications: ● Connection port size D: Rc1/8 ● Hexagonal face size (mm): 14 ● Type: Hexagonal socket ● Fluid used: Water, air, oil ● Dimensions (mm) A: 21 ● Dimensions (mm) B: 14 ● Fluid used: Water, air, oil ● Fluid temperature (℃): -50 to 150℃ ● Operating pressure: 6.90MPa Material/Finish: ● Brass (C3604)
