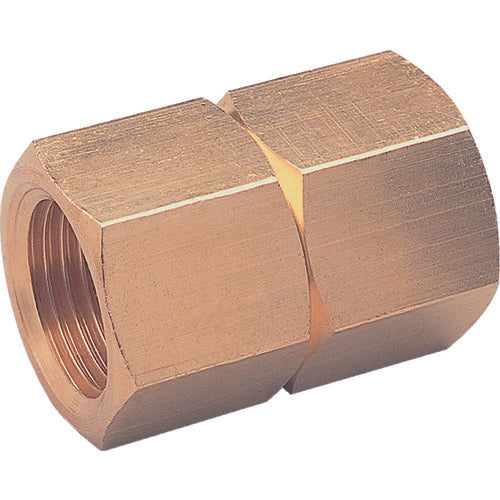

ASOH Hexagonal Socket PT3/8 (RoHS) NS-1033R 1 piece

Catalogue number: NS-1033R Features: ● Used for connecting externally threaded piping. ● RoHS compliant. Applications: ● Threaded fittings. ● For connecting externally threaded piping. Specifications: ● Connection port size D: Rc3/8 ● Hexagonal face size (mm): 21 ● Type: Hexagonal socket ● Fluids used: Water, air, oil, and other materials that have no adverse effects. ● Dimensions (mm) A: 32 ● Dimensions (mm) B: 21 ● Fluids used: Water, air, oil ● Fluid temperature (℃): -50 to 150℃ ● Operating pressure: 6.90MPa Material/Finish: ● Brass (C3604)
