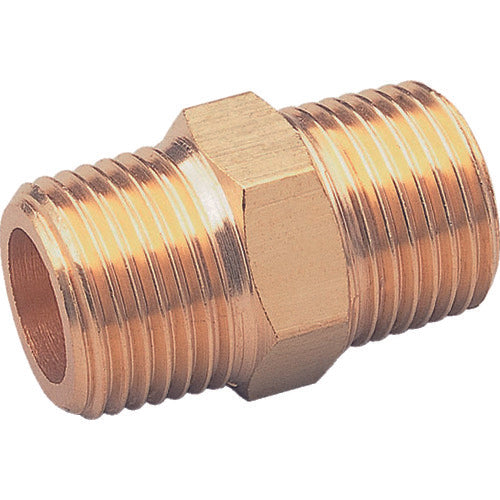

ASOH Hexagonal nipple PT1/8 (RoHS) NT-1011R 1 piece

Catalog number: NT-1011R Features: ● Used for connecting internal thread piping. ● RoHS compliant. Applications: ● Threaded fittings. ● For connecting internal thread piping. Specifications: ● Connection port size D: R1/8 ● Hexagonal face size (mm): 12 ● Type: Hexagonal nipple ● Fluid used: Water, air, oil ● Dimensions (mm) A: 22 ● Dimensions (mm) B: 12 ​​● Fluid used: Water, air, oil ● Fluid temperature: -50 to 150°C ● Operating pressure: 6.90MPa Material/Finish: ● Brass (C3604)
