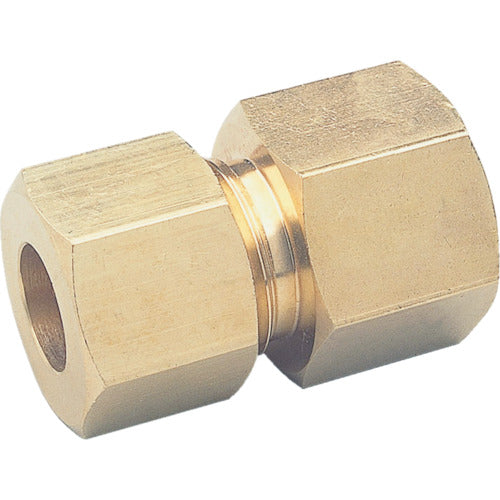

ASOH Internal thread ring joint PT1/8XΦ8 RF-1108 1 piece

ASOH Internal thread ring joint PT1/8XΦ8 RF-1108 1 piece

JAN：4571133552330 　
ASOH fittings Construction and lighting supplies Pipework Equipment Ring joint (for copper pipes) Small diameter pipe fittings
¥515
¥515
Sale Sold out
Shipping calculated at checkout.

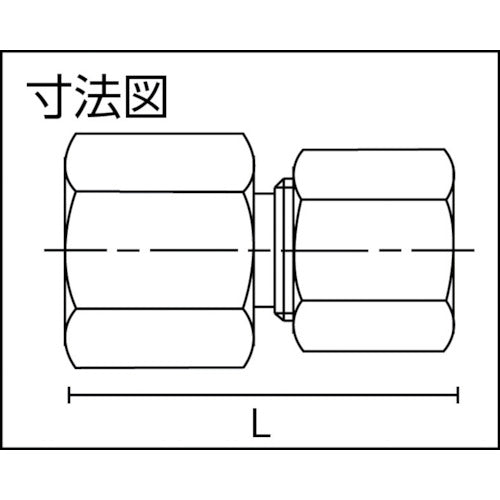

Catalog number: RF-1108 Use: ●Copper pipe fittings. Specifications: ●Applicable copper pipe outer diameter (mm): 8 ●Thread: Rc1/8 ●Hexagonal side (mm) nut: 17 ●Hexagonal side (mm) body: 14 ●Dimension L (mm): 31 ●Dimension (mm) L: 31 ●Fluid used: Water, air, oil ●Fluid temperature: -50 to 150°C ●Operating pressure: 3.45MPa ●For connecting copper pipes and screws. Material/Finish: ●Brass (C3604) Note: ●Not compatible with refrigerant gases.
