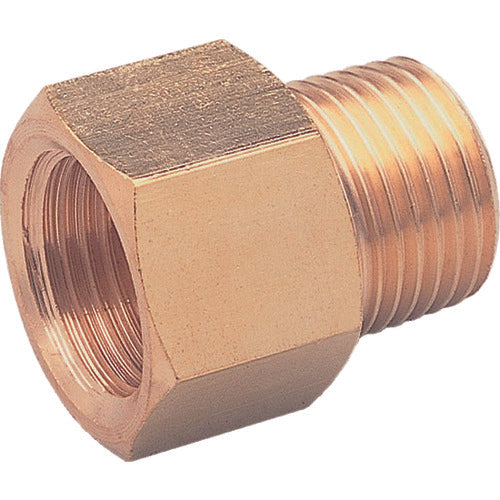

ASOH Internal and External Socket PT3/4 (RoHS) NF-1066R 1 piece

Catalogue number: NF-1066R Features: ●Used for piping with different sizes of internal and external threads. ●RoHS compliant. Applications: ●Fittings for threads. ●For connecting internal and external threads. Specifications: ●Connection port size D: Rc3/4 ●Hexagonal face size (mm): 32 ●Connection port size D1: R3/4 ●Connection port size D2: Rc3/4 ●Type: Internal and external socket ●Fluids used: Water, air, oil, and other materials that have no adverse effects. ●Dimensions (mm) B: 32 ●Dimensions (mm) A: 39 ●Fluids used: Water, air, oil ●Fluid temperature: -50 to 150°C ●Operating pressure: 6.90MPa Material/Finish: ●Brass (C3604)
