ASOH Internal x Internal thread type (T port) (RoHS directive equivalent) 3-way PT1/4 BX-1222R-O2 1 piece

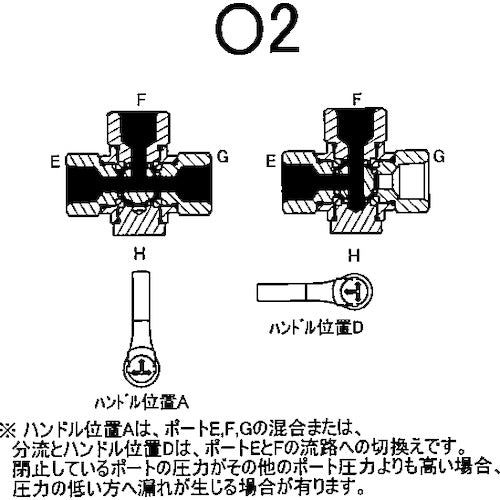

Catalog number: BX-1222R-O2 Features: ●T-port three-way valve. ●Flow rate can be switched in the T-shaped direction. ●Can also handle water division and mixing. Specifications: ●Connection diameter D1: PT1/4 ●Connection diameter D2: PT1/4 ●Height (mm): 42 ●Usable fluid: water, air, oil (fluids that have no adverse effect on the material) ●Usable fluid: water, air, oil (fluids that have no adverse effect on the material) ●Usable pressure: MAX 0.98MPa ●Usable temperature: -10℃ to 80℃ (no freezing) Material/Finish: ●Body: Brass (C3771, C3604) + chrome plating ●O-ring: Fluorine rubber (FKM)
