ASOH Internal x Internal Thread Type (T Port) (RoHS Directive Equivalent) Three-way PT3/8 BX-1333R-WS 1 pc

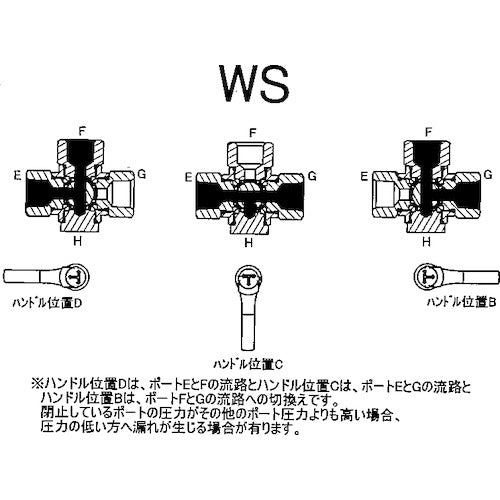

Catalog number: BX-1333R-WS Features: ●T-port three-way valve. ●Flow rate can be switched in the T-shaped direction. ●Can also handle water separation and mixing. Specifications: ●Connection diameter D1: PT3/8 ●Connection diameter D2: PT3/8 ●Height (mm): 42 ●Usable fluid: water, air, oil (fluids that do not adversely affect the material) ●Usable pressure: MAX 0.98MPa ●Usable temperature: -10℃ to 80℃ (no freezing) Material/Finish: ●Body: Brass (C3771, C3604) + chrome plating ●O-ring: Fluorine rubber (FKM)
