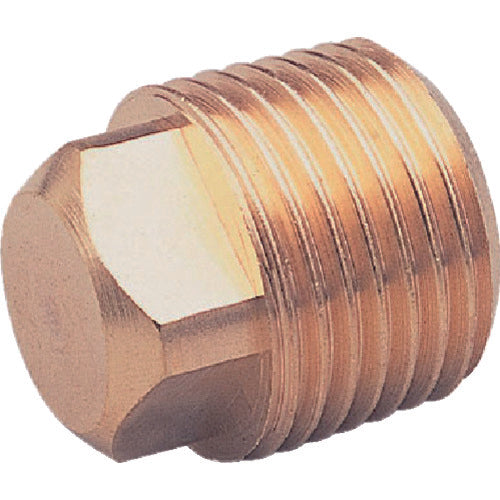

ASOH Square Plug PT1/2 (RoHS) NP-1004R 1 pc

Catalog number: NP-1004R Features: ●For use when internal thread piping is temporarily stopped. ●RoHS compliant. Applications: ●Fittings for threads. ●For temporary stoppage of internal thread piping. Specifications: ●Connection port size D: R1/2 ●Square face size (mm): 14 ●Type: Square plug ●Fluid used: Water, air, oil, and other materials that have no adverse effects. ●Dimensions (mm) B: 14 ●Dimensions (mm) A: 23 ●Fluid used: Water, air, oil ●Fluid temperature: -50 to 150°C ●Operating pressure: 6.90MPa Material/Finish: ●Brass (C3604)
