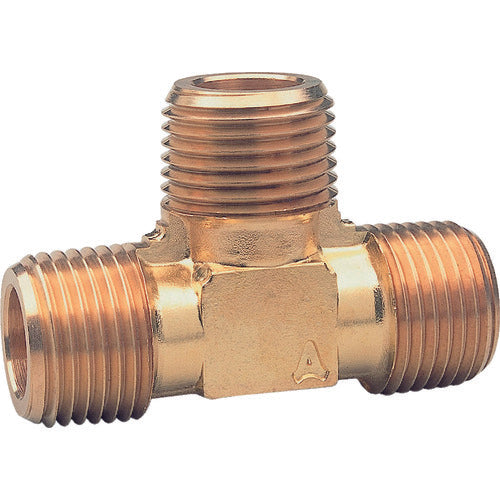

ASOH External Thread Tee PT3/4 (RoHS) TM-1666R 1 pc

Catalog number: TM-1666R Features: ● Used to connect internal thread piping. ● RoHS compliant. Applications: ● Threaded fittings. ● For piping branching. Specifications: ● Connection port size D: R3/4 ● Dimensions (mm) L: 68 ● Type: External thread tee ● Fluids used: Water, air, oil, and other materials that have no adverse effects. ● Dimensions (mm) L2: 34 ● Fluid temperature (℃): -50 to 150℃ ● Operating pressure: 6.90MPa Material/Finish: ● Brass (C3771)
