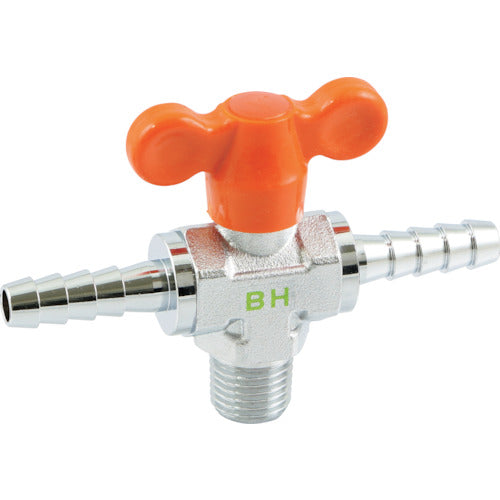

ASOH External thread x hose port (L port) (RoHS Directive equivalent product) PT1/4 x φ8 x φ8 BH-5288R 1 pc

Catalog number: BH-5288R Features: ● Compact shape with integrated ball valve and fitting. ● Double-ended type, ideal for switching valves. ● Unique color sense and design enhance the functionality and aesthetics of the equipment. Applications: ● 0.98MPa (80℃ to -10℃) water, air, oil (excluding frozen areas). Specifications: ● Height (mm): 31 ● Operating temperature range (℃): -10 to 80 (excluding frozen areas) ● Connection port size D: R1/4 ● Bamboo shoot outer diameter (mm): 8 ● Fluids used: water, air, oil (fluids that do not adversely affect the material) ● Fluids used: water, air, oil (fluids that do not adversely affect the material) ● Operating temperature range: -10 to 80℃ (excluding frozen areas) ● Operating pressure: 0.98MPa Material/Finish: ● Body: Brass (C3771, C3604) + chrome plating ● O-ring: Nitrile rubber (NBR)
