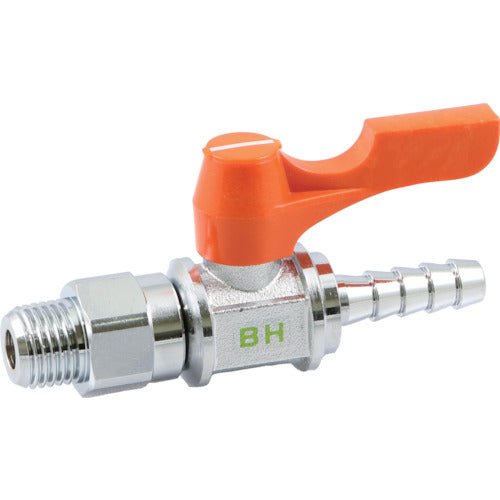

ASOH External thread x hose mouth (RoHS Directive equivalent product) PT1/4 x φ8 BH-7209R 1 pc

Catalog number: BH-7209R Features: ● Compact shape with integrated ball valve and fitting. ● Valve body and mounting part rotate independently, so it can be easily connected even in narrow spaces. ● Unique color sense and design enhance the functionality and aesthetics of the equipment. Applications: ● Water, air, oil at 0.98MPa (80℃ to -10℃) (excluding frozen areas). Specifications: ● Height (mm): 29 ● Operating temperature range (℃): -10 to 80 (excluding frozen areas) ● Connection port diameter D: R1/4 ● Bamboo shoot outer diameter (mm): 9.0 ● Fluid used: Water, air, oil (fluid that does not adversely affect the material) ● Operating temperature range: -10 to 80℃ (excluding frozen areas) ● Operating pressure: 0.98MPa Material/Finish: ● Body: Brass (C3771, C3604) + chrome plating ● O-ring: Nitrile rubber (NBR)
