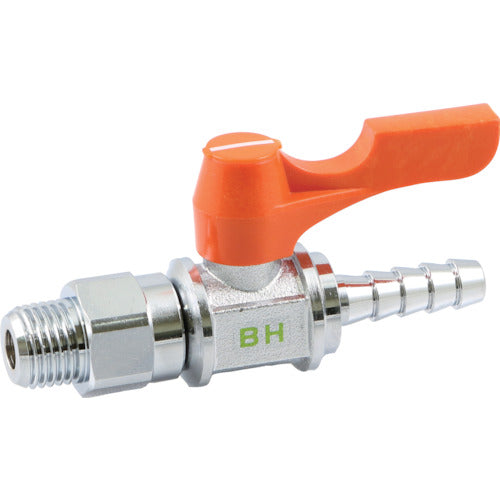

ASOH External thread x hose port (RoHS Directive equivalent) PT1/8 x φ7 BH-7107R 1 pc

Catalog number: BH-7107R Features: ● Compact integrated ball valve and fitting. ● The valve body and mounting part rotate independently, making it easy to connect even in tight spaces. ● The unique color sense and design enhance the functionality and aesthetics of the equipment. Applications: ● Water, air, and oil at 0.98 MPa (80°C to -10°C) (excluding frozen areas). Specifications: ● Height (mm): 29 ● Connection port diameter D: R1/8 ● Bamboo shoot outer diameter (mm): 7.0 ● Operating temperature range: -10 to 80°C (excluding frozen areas) ● Operating pressure: 0.98 MPa
