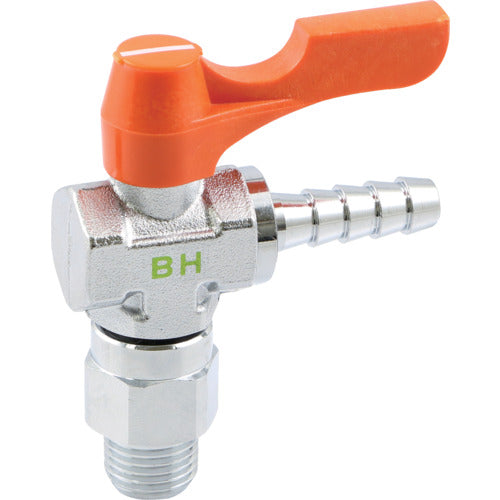

ASOH External thread x hose mouth (RoHS Directive equivalent product) PT3/8 x φ10.5 BH-8310R 1 pc

Catalog number: BH-8310R Features: ● Compact integrated ball valve and fitting. ● The valve body and mounting part rotate independently, making it easy to connect even in tight spaces. ● The unique color sense and design enhance the functionality and aesthetics of the equipment. Applications: ● Water, air, and oil at 0.98 MPa (80°C to -10°C) (excluding frozen areas). Specifications: Height (mm): 29 Operating temperature range (℃): -10 to 80 (excluding frozen areas) Connection diameter D: R3/8 Bamboo shoot outer diameter (mm): 10.5 Fluids used: water, air, oil (fluids that do not adversely affect the material) Fluids used: water, air, oil (fluids that do not adversely affect the material) Operating temperature range: -10 to 80℃ (excluding frozen areas) Operating pressure: 0.98MPa Material/Finish: Body: Brass (C3771, C3604) + chrome plating O-ring: Nitrile rubber (NBR)
