ASOH external x internal thread type (T port) (RoHS directive equivalent product) PT1/2 x PT1/2 BX-4444R-S1 1 piece

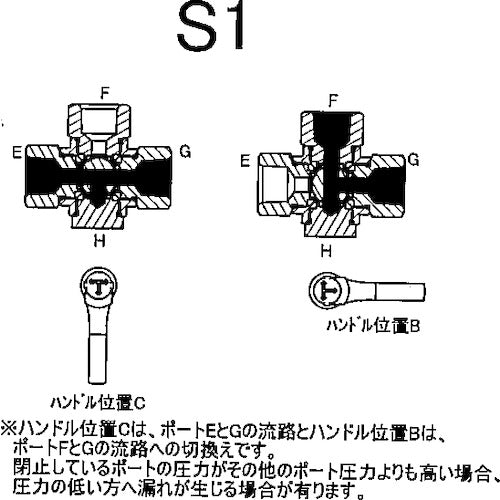

Catalog number: BX-4444R-S1 Features: ●T-port three-way valve. ●Flow rate can be switched in the T-shaped direction. ●Can also handle water division and mixing. Specifications: ●Connection diameter D1: PT1/2 ●Connection diameter D2: PT1/2 ●Height (mm): 47 ●Usable fluid: water, air, oil (fluids that do not adversely affect the material) ●Usable pressure: MAX 0.98MPa ●Usable temperature: -10℃ to 80℃ (no freezing) Material/Finish: ●Body: Brass (C3771, C3604) + chrome plating ●O-ring: Fluorine rubber (FKM)
