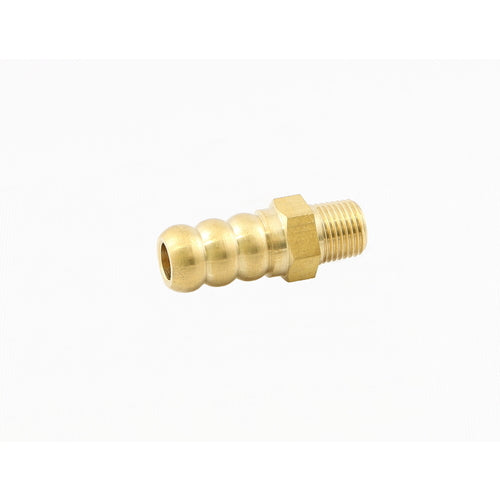

ASOH Water Inlet Hose Nipple (Round Type) PT1/4 x Φ11 MH-1222 1 pc

Catalog number: MH-1222 Features: ● As a hose fitting for mold cooling Applications: ● Fittings for hoses. Specifications: ● Connection diameter D: R1/4 ● Hexagonal side (mm): 14 ● Maximum operating pressure (MPa): 3.45 ● Connection diameter (bamboo shoot outer diameter) (mm): 11.0 ● Hexagonal side (mm) body: 14 ● Type: Hose nipple ● Fluid used: Water, air, oil ● Fluid temperature: -50 to 150°C ● Operating pressure: 3.45MPa Material/Finish: ● Brass (C3604)
