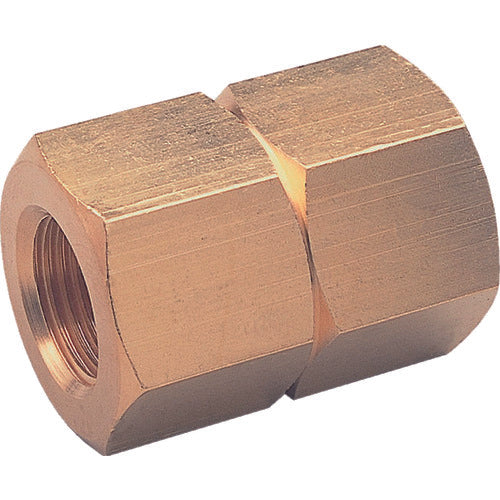

ASOH Different Diameter Hexagonal Socket PT1/8XPT1/4 (RoHS) NS-1012R 1 pc

Catalog number: NS-1012R Features: ● Used for piping with different external thread sizes. ● RoHS compliant. Applications: ● Fittings for threads. ● For piping with different external thread sizes. Specifications: ● Connection diameter D: Rc1/4 ● Hexagonal side (mm): 17 ● Connection diameter D1: Rc1/8 ● Connection diameter D2: Rc1/4 ● Type: Hexagonal socket with different diameters ● Fluids used: Water, air, oil ● Dimensions (mm) B: 17 ● Dimensions (mm) A: 26 ● Fluids used: Water, air, oil ● Fluid temperature (℃): -50 to 150℃ ● Operating pressure: 6.90MPa Material/Finish: ● Brass (C3604)
