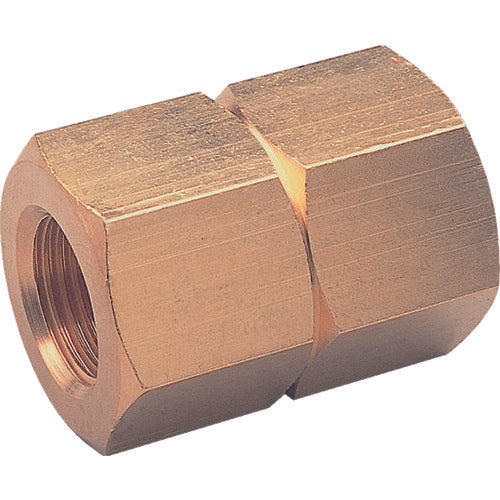

ASOH Different Diameter Hexagonal Socket PT1/8XPT3/8 (RoHS) NS-1013R 1 pc

Catalogue number: NS-1013R Features: ●For use with piping of different external thread sizes. ●Complies with RoHS. Applications: ●Fittings for threads. ●For piping of different external thread sizes. Specifications: ●Connection diameter D: Rc3/8 ●Hexagonal side (mm): 21 ●Connection diameter D1: Rc1/8 ●Connection diameter D2: Rc3/8 ●Type: Hexagonal socket with different diameters ●Fluids used: Water, air, oil, and other materials that have no adverse effects. ●Dimensions (mm) A: 28 ●Dimensions (mm) B: 21 ●Fluids used: Water, air, oil ●Fluid temperature (℃): -50 to 150℃ ●Operating pressure: 6.90MPa Material/Finish: ●Brass (C3604)
