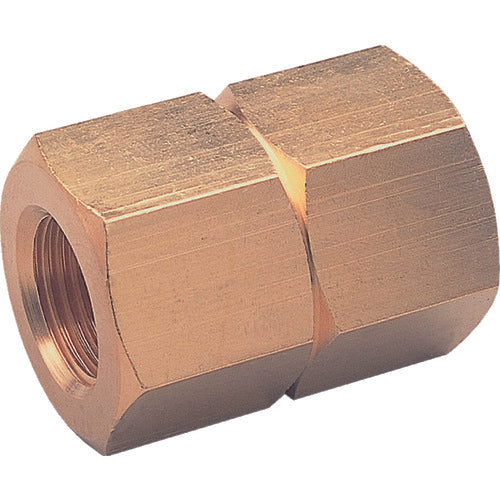

ASOH Different Diameter Hexagonal Socket PT3/8 x PT3/4 (RoHS) NS-1036R 1 pc

Catalogue number: NS-1036R Features: ●For use with piping of different external thread sizes. ●Complies with RoHS. Applications: ●Fittings for threads. ●For piping of different external thread sizes. Specifications: ●Connection diameter D: Rc3/4 ●Hexagonal side (mm): 32 ●Connection diameter D1: Rc3/8 ●Connection diameter D2: Rc3/4 ●Type: Hexagonal socket with different diameters ●Fluids used: Water, air, oil ●Dimensions (mm) B: 32 ●Dimensions (mm) A: 44 ●Thread: Rc3/8×3/4 ●Fluids used: Water, air, oil ●Fluid temperature (℃): -50 to 150℃ ●Operating pressure: 6.90MPa Material/Finish: ●Brass (C3604) Note: ●Freight charges will be charged separately for direct shipping
